Description

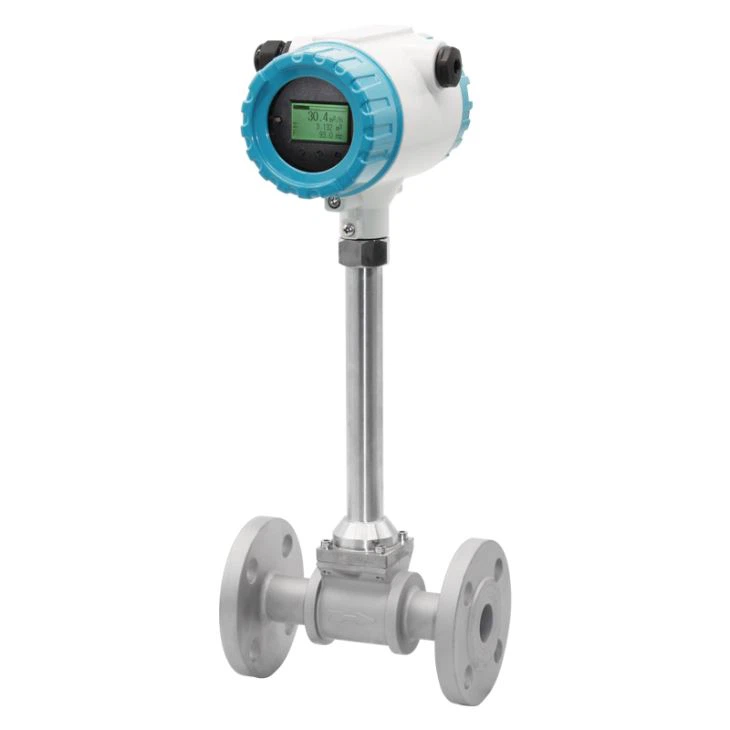

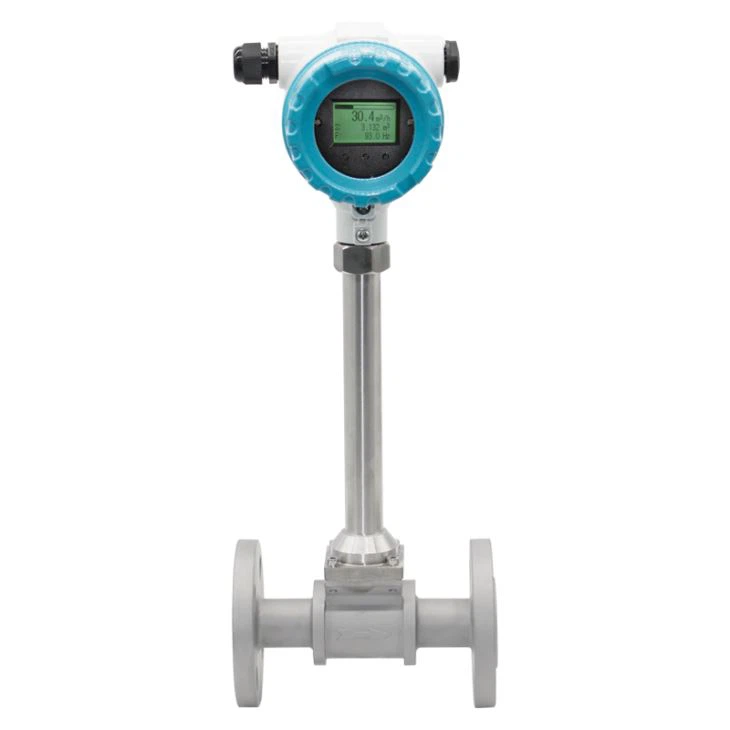

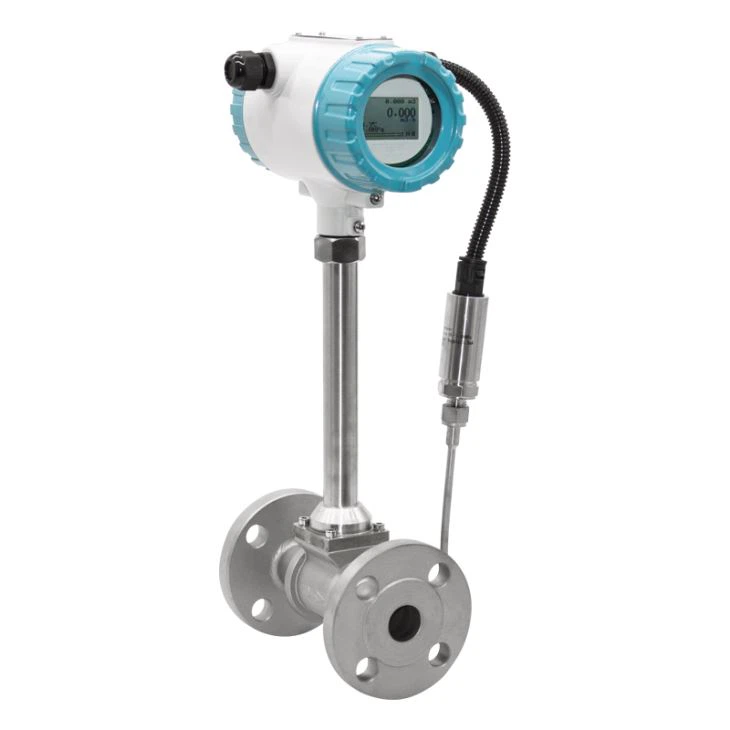

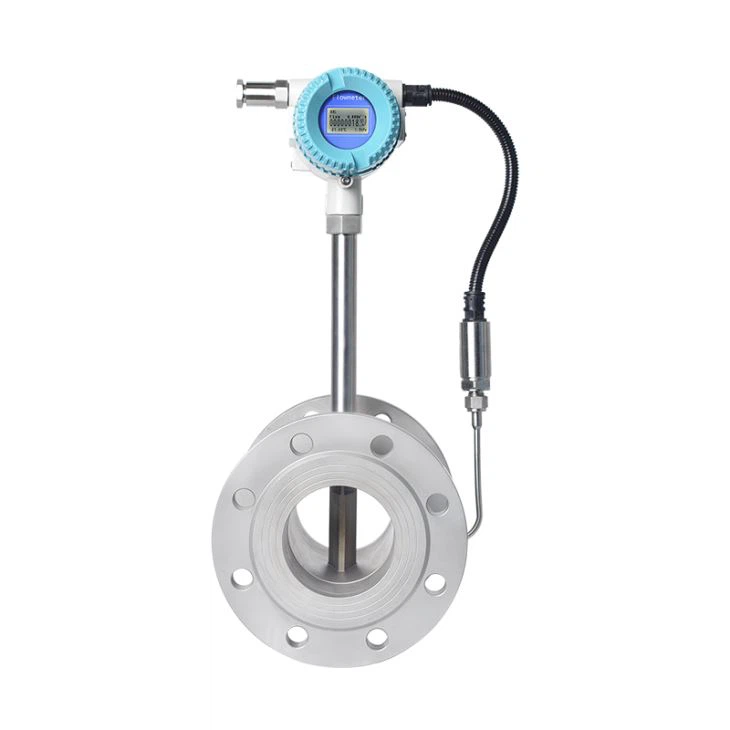

Flange vortex flow meter works based on Carmen and Strouhal relevant spiral produce and on the theory of the flow relationship. Vortex flow meters measure flows of liquid, gas and steam by detecting the frequency at which vortices are alternatively shed from a bluff body. According to proven laws and physics, the frequency at which the vortices are shed is directly proportional to the flow velocity.
Features:
● Japan technology with embedded-type sensor,sensor could integrate with temperature.
● Circuit Board: Digital circuit board,anti-vibration and anti-interference.
● Flow converter: Distinctive modular design, amateurs can operate, disassemble and assemble easily, it will avoid accident risks.
● Integral forging, anti-rust, long service life
● Resist high temperature up to 350℃,normal temperature up to 250℃
Applications:
● (non-)conductive liquids, gases, saturated and superheated steam
● Gross/net heat metering of steam and hot water
● Monitoring of compressor output and evaluation of Free Air Delivery (FAD)
● Industrial gases (natural gas, nitrogen etc.)
● Compressed air systems
● Thermal oils, Desalinated water etc.
| Measured Medium | Liquid, Gas, Steam |
| Medium Temp | -40℃~+200℃; -40℃~+280℃; 40℃~+350℃ |
| Nominal Pressure | 1.6MPa;2.5MPa;4.0MPa;6.4MPa(Other pressure can be custom,need consult supplier) |
| Accuracy | 1.0%(Flange), 1.5%(Insertion) |
| Measuring range ratio | 1:10(Standard air condition as reference)
1:15(Liquid) |
| Flow Range | Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s |
| Specifications | DN15-DN300(Flange), DN80-DN2000(Insertion), DN15-DN100(Thread), DN15-DN300(Wafer), DN15-DN100(Sanitary) |
| Material | SS304(Standard), SS316(Optional) |
| Pressure Loss Coefficient | Cd≤2.6 |
| Vibration Acceleration Allowed | ≤0.2g |
| IEP ATEX | II 1G Ex ia IIC T5 Ga |
| Ambient Condition | Ambient Temp:-40℃-65℃(Non-explosion-proof site); -20℃-55℃(Explosion-proof site)
Relative Humidity:≤85% Pressure:86kPa-106kPa |
| Power Supply | 12-24V/DC or 3.6V battery powered |
| Signal Output | Pulse frequency signal2-3000Hz, Low level≤1V, high level≥6V |
| Two-wire system 4-20 signal(isolated output), Load≤500 |
| mm) | Liquid(Reference medium:normal temperature water, m³/h) | Gas(Reference medium:20℃, 101325pa condition air, m³/h) | ||
| Standard | Extended | Standard | Extended | |
| 15 | 0.8~6 | 0.5~8 | 6~40 | 5~50 |
| 20 | 1~8 | 0.5~12 | 8~50 | 6~60 |
| 25 | 1.5~12 | 0.8~16 | 10~80 | 8~120 |
| 40 | 2.5~30 | 2~40 | 25~200 | 20~300 |
| 50 | 3~50 | 2.5~60 | 30~300 | 25~500 |
| 65 | 5~80 | 4~100 | 50~500 | 40~800 |
| 80 | 8~120 | 6~160 | 80~800 | 60~1200 |
| 100 | 12~200 | 8~250 | 120~1200 | 100~2000 |
| 125 | 20~300 | 12~400 | 160~1600 | 150~3000 |
| 150 | 30~400 | 18~600 | 250~2500 | 200~4000 |
| 200 | 50~800 | 30~1200 | 400~4000 | 350~8000 |
| 250 | 80~1200 | 40~1600 | 600~6000 | 500~12000 |
| 300 | 100~1600 | 60~2500 | 1000~10000 | 600~16000 |
| 400 | 200~3000 | 120~5000 | 1600~16000 | 1000~25000 |
| 500 | 300~5000 | 200~8000 | 2500~25000 | 1600~40000 |
| 600 | 500~8000 | 300~10000 | 4000~40000 | 2500~60000 |
| Absolute Pressure (Mpa) | Temperature(℃) | |||||
| 150 | 200 | 250 | 300 | 350 | 400 | |
| 0.1 | 0.52 | 0.46 | 0.42 | 0.38 | ||
| 0.15 | 0.78 | 0.70 | 0.62 | 0.57 | 0.52 | 0.49 |
| 0.2 | 1.04 | 0.93 | 0.83 | 0.76 | 0.69 | 0.65 |
| 0.25 | 1.31 | 1.16 | 1.04 | 0.95 | 0.87 | 0.81 |
| 0.33 | 1.58 | 1.39 | 1.25 | 1.14 | 1.05 | 0.97 |
| 0.35 | 1.85 | 1.63 | 1.46 | 1.33 | 1.22 | 1.13 |
| 0.4 | 2.12 | 1.87 | 1.68 | 1.52 | 1.40 | 1.29 |
| 0.5 | 2.35 | 2.11 | 1.91 | 1.75 | 1.62 | |
| 0.6 | 2.84 | 2.54 | 2.30 | 2.11 | 1.95 | |
| 0.7 | 3.33 | 2.97 | 2.69 | 2.46 | 2.27 | |
| 0.8 | 3.83 | 3.41 | 3.08 | 2.82 | 2.60 | |
| 1.0 | 4.86 | 4.30 | 3.88 | 3.54 | 3.26 | |
| 1.2 | 5.91 | 5.20 | 4.67 | 4.26 | 3.92 | |
| 1.5 | 7.55 | 6.58 | 5.89 | 5.36 | 4.93 | |
| 2.0 | 8.968 | 7.97 | 7.21 | 6.62 | ||
| 2.5 | 11.5 | 10.1 | 9.11 | 8.33 | ||
| 3.0 | 14.2 | 12.3 | 11.1 | 10.1 | ||
| 3.5 | 17.0 | 14.6 | 13.0 | 11.8 | ||
| 4.0 | 17.0 | 15.1 | 13.6 | |||
