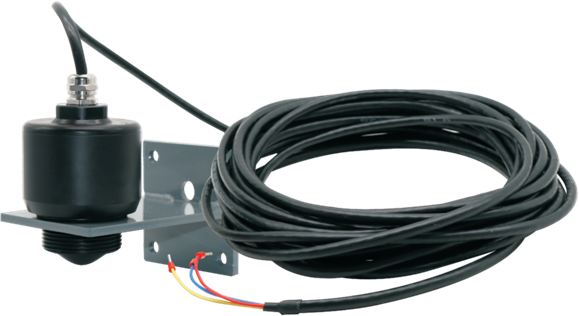

80GHZ Radar Level Transmitter

QTRWL  series   radar  water   level  transmitter   is  based  on  frequency modulated   continuous  wave   (FMCW)   operating   at   76-81GHz. The maximum  range of the  product  can  reach  65m, and the  blind zone  is within 10 cm. it’s non contact level measurement with high accuracy.Because of its higher operating frequency, larger bandwidth, and higher measurement accuracy, the product provides a bracket fixing method, which makes installation convenient and easy.It’s particularly used to monitor the level of tank, river, water treatment and rain flow in open channels.

Data Sheet Download

Description

Product Features:
Millimeter wave  radio frequency chip, to achieve  more compact radio frequency architecture, higher signal-to-noise ratio, smaller blind area.
5GHz working bandwidth enables the product to have higher measurement resolution and measurement accuracy.
The antenna beam angle is 6°, the interference in the installation environment will have less impact on the instrument, and the installation is more convenient.
Integrated lens design, compact size.
Display controller and water level gauge adopt separate design and can be customized.
Low power consumption operation.
Support Bluetooth debugging of mobile phone.
